Fiber-coupled single-mode laser diode at 1200nm
Fiber-coupled single-mode laser diode at 1200nm
SML1200005YY700MXXXX

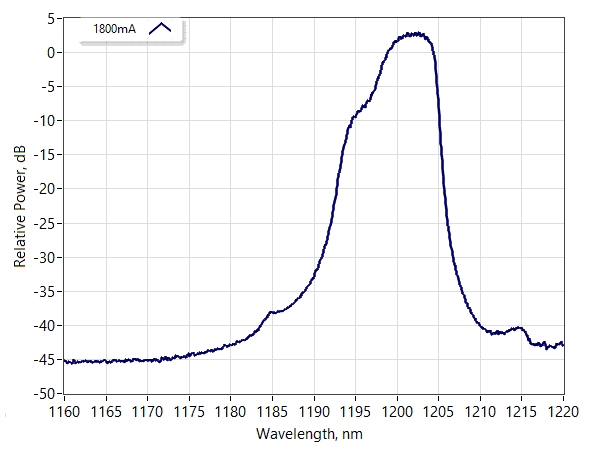

Mean wavelength: 1200 nm

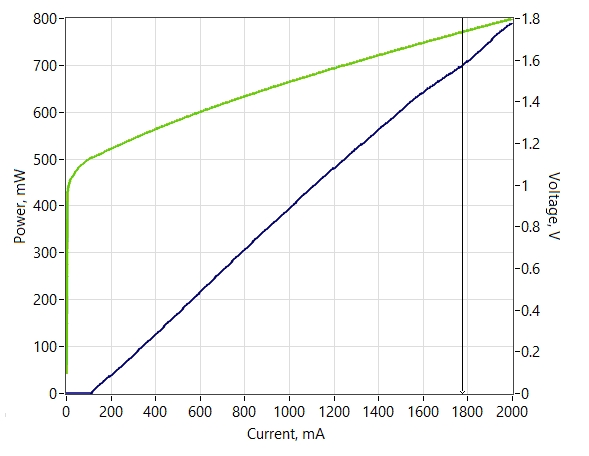

Output power: 700 mW
Forward current: 1700 mA
Forward voltage: 1.75 V
Threshold current: 110 mA
Spectrum bandwidth (3dB): 5.5 nm
Polarization extinction ratio: 18 dB
Slow axis beam divergence: deg
Fast axis beam divergence: deg
Package: Fiber-coupled
Add to cart
applications
- Bismuth Doped Fiber Amplifier (BDFA) pumping
