180 mW O-Band DFB Laser with Integrated Isolator and 100 kHz Linewidth

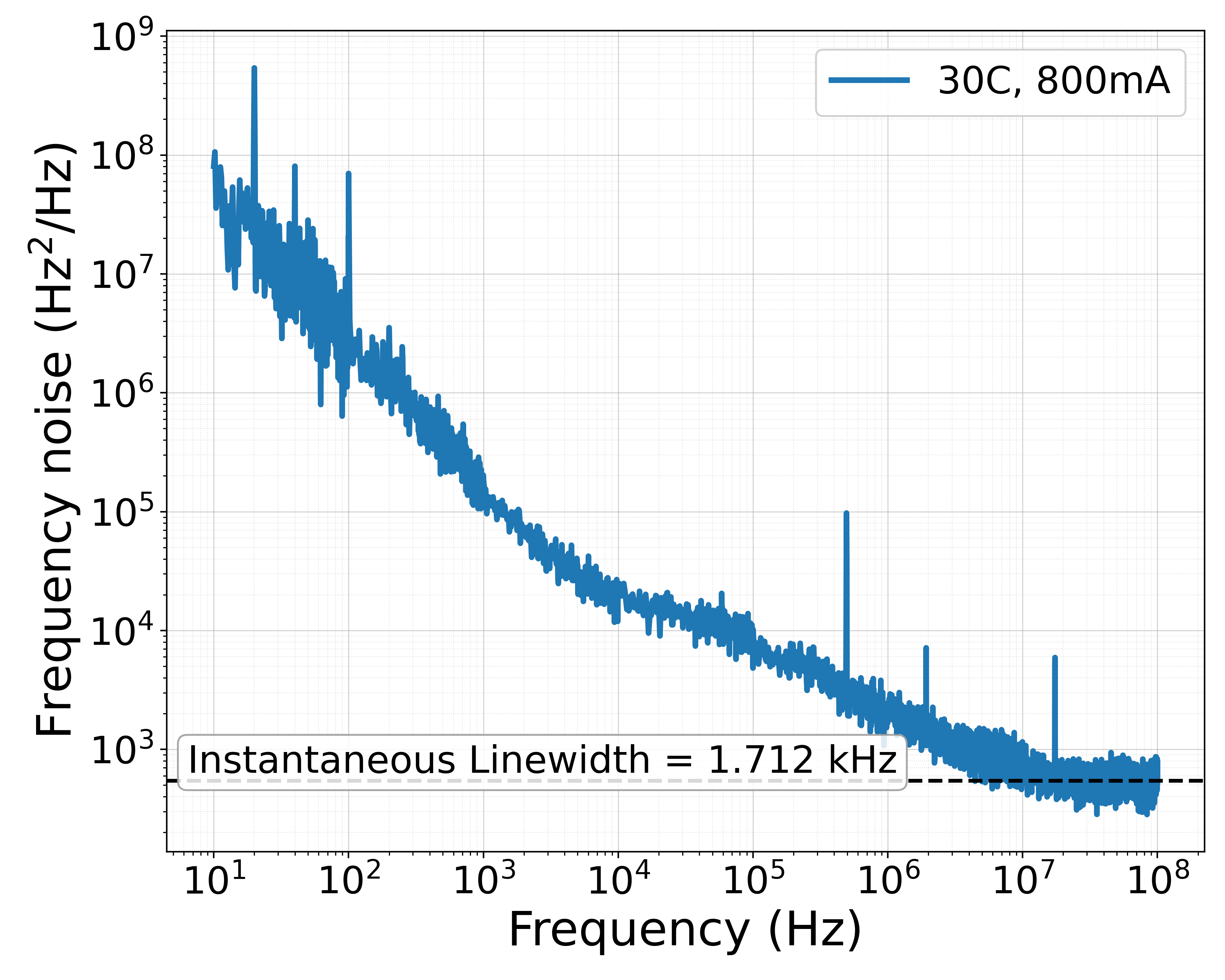

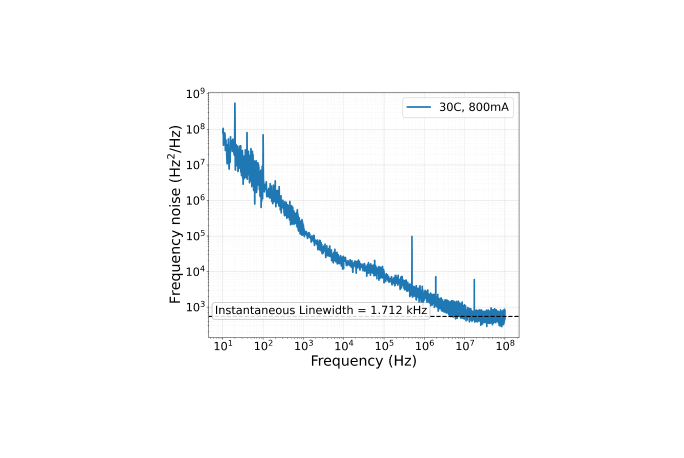

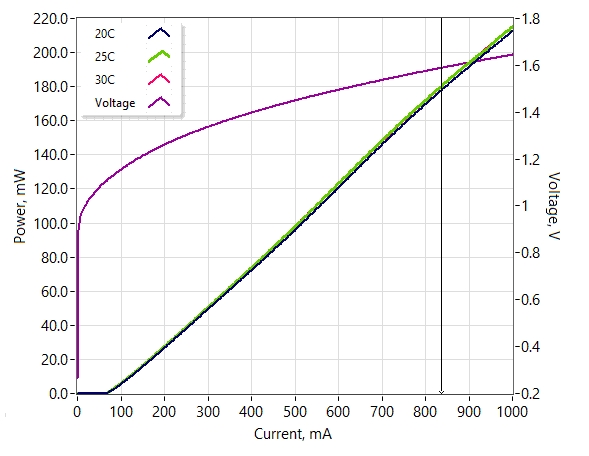

Innolume introduces the DFB13XX000YY180MFVXX, a fiber-coupled O-band quantum-dot DFB laser module delivering up to 180mW ex-fiber output power at customer-selected wavelengths between 1270 and 1330nm. The module combines high output power with narrow-linewidth and low-noise performance. Its typical effective linewidth is 100kHz at an observation time of 100ms, while the typical instantaneous Lorentzian linewidth is 2kHz.
A double-stage free-space optical isolator is integrated directly into the package, providing additional robustness against uncontrolled back-reflections, simplifying system integration, and offering a convenient, ready-to-use solution.
Noise performance is equally strong. The laser achieves a typical RIN of −155dB/Hz from 1MHz to 18GHz, together with a typical side-mode suppression ratio of 50dB.
The module also provides mode-hop-free continuous tuning and includes a built-in monitor photodiode for power monitoring.
The combination of 180mW ex-fiber output power, narrow linewidth, low noise, and integrated optical isolation makes the DFB13XX000YY180MFVXX a compelling laser source for coherent and low-noise photonic systems.
Key Features
- Up to 180mW ex-fiber output power
- Integrated double-stage free-space optical isolator
- Customer-selected wavelength from 1270 to 1330nm
- 100kHz typical effective linewidth at 100ms
- 2kHz typical instantaneous Lorentzian linewidth
- −155dB/Hz typical RIN from 1MHz to 18GHz
- 50dB typical side-mode suppression ratio
- Mode-hop-free continuous tuning
- Built-in monitor photodiode
Applications
- Coherent sensing and LiDAR
- Spectroscopy and gas excitation
- Quantum and nonlinear optics
- Datacom
- Testing and instrumentation
For product details and wavelength availability, contact Innolume at info@innolume.com
