Booster Optical Amplifier at 1060nm in BTF Package

Booster Optical Amplifier at 1060nm in BTF Package

boa/BOA in 14-pin BTF package

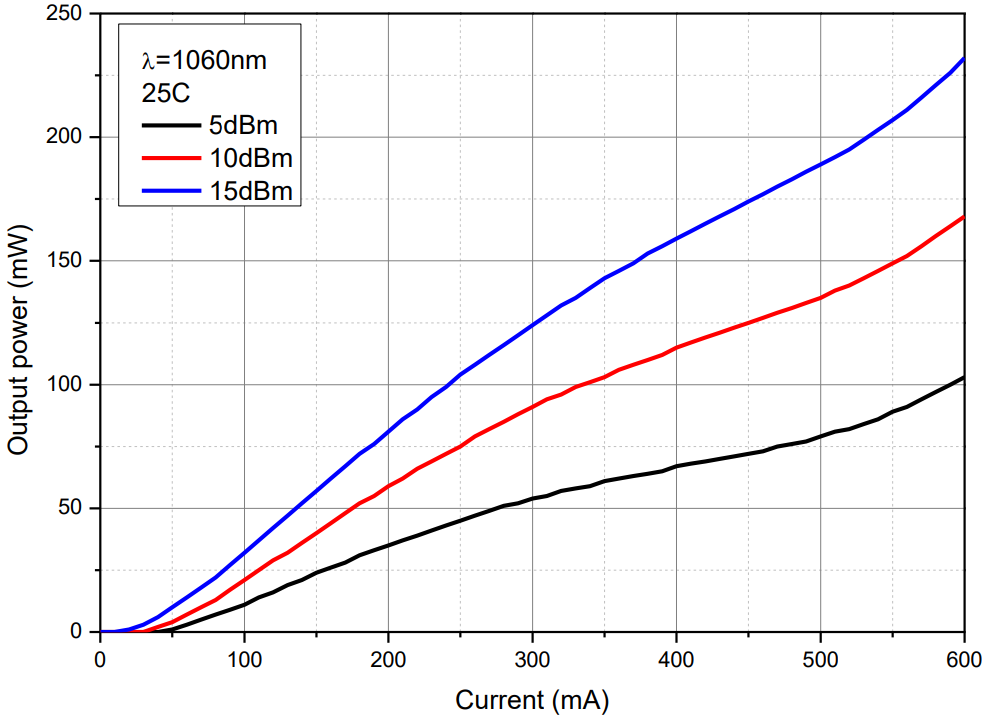

Output power at different input signals

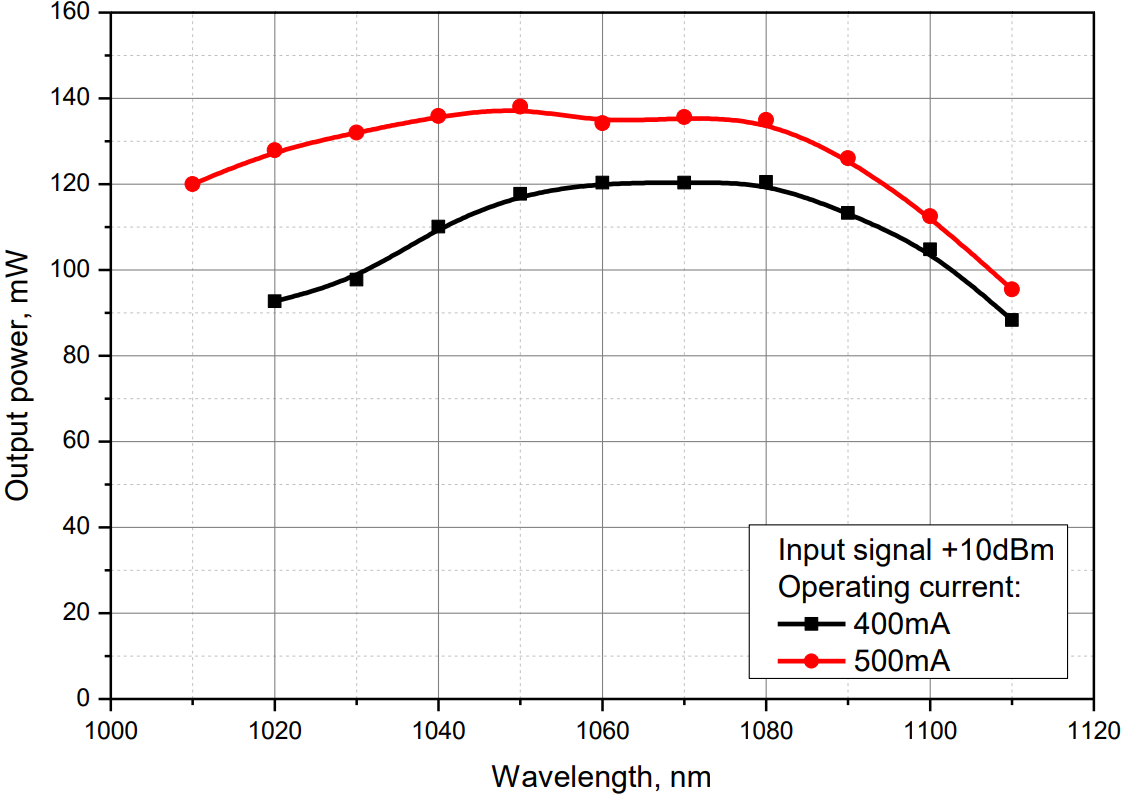

Power spectra at different currents

Gain vs. Output power

Booster Optical Amplifier at 1060nm in BTF Package

BOA1060080YY120MXXXX

Gain mean wavelength: 1060 nm

Gain bandwith (3dB): 80 nm

Output power: 120 mW

Saturated gain: 10 dB

Small signal gain: 15 dB

Saturation output power: 19 dBm

Noise figure: 6.5 dB

Forward current: 400 mA

Polarization extinction ratio: 18 dB

Slow axis beam divergence: deg

Add to cart

applications

OCT
