Broad-Area Laser Diode at 1020nm with 6W Output Power on Submount
Broad-Area Laser Diode at 1020nm with 6W Output Power on Submount
BAD1020004CC006WXXXX
Mean wavelength: 1020 nm
Mesa width: 90 um

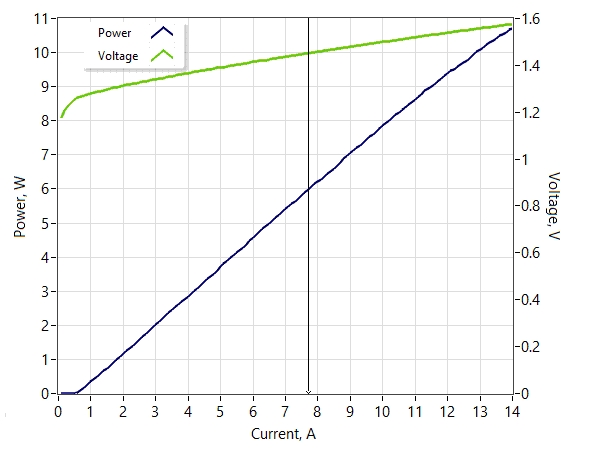

Output power: 6 W
Forward current: 7 A
Forward voltage: 1.5 V
Threshold current: 0.6 A

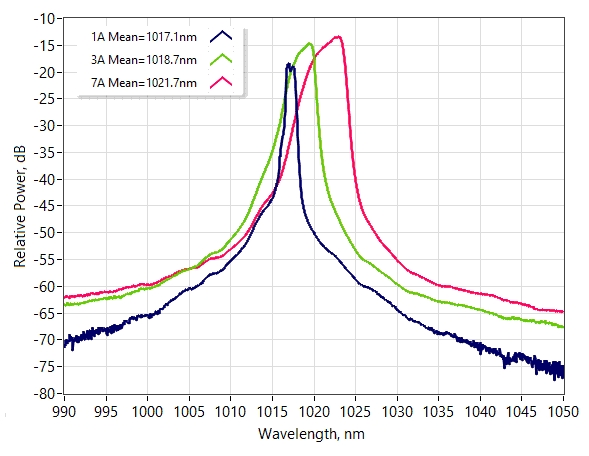

Spectrum bandwidth (3dB): 4 nm

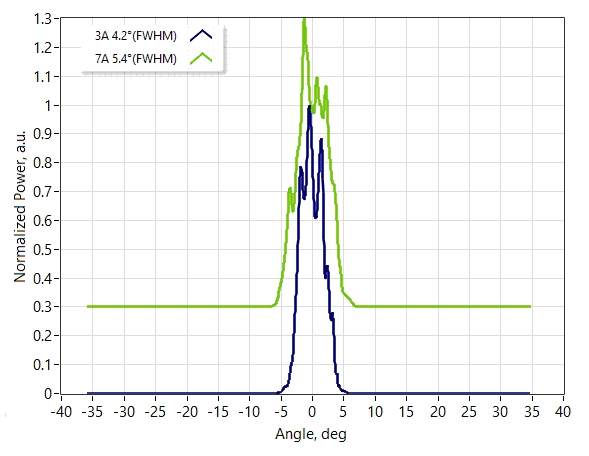

Slow axis beam divergence: 6 deg

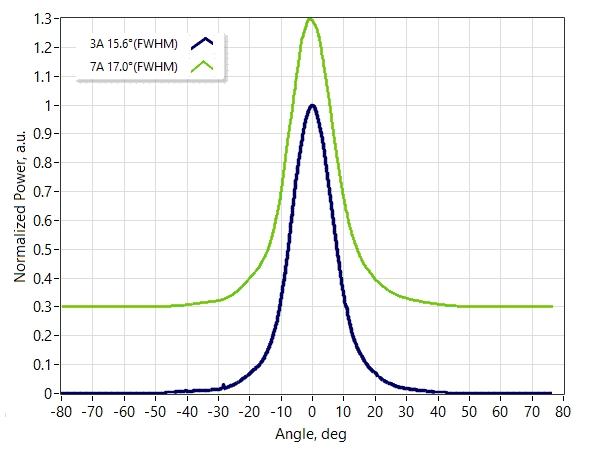

Fast axis beam divergence: 16 deg
Package: Chip-on-carrier
