Broad-Area Laser Diode at 1064nm with 12W Output Power on C-Mount
Broad-Area Laser Diode at 1064nm with 12W Output Power on C-Mount
BAH1064004CM012WXXXX

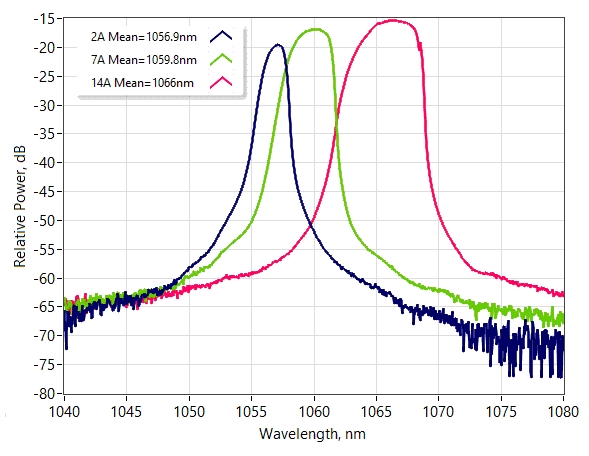

Mean wavelength: 1064 nm
Mesa width: 250 um

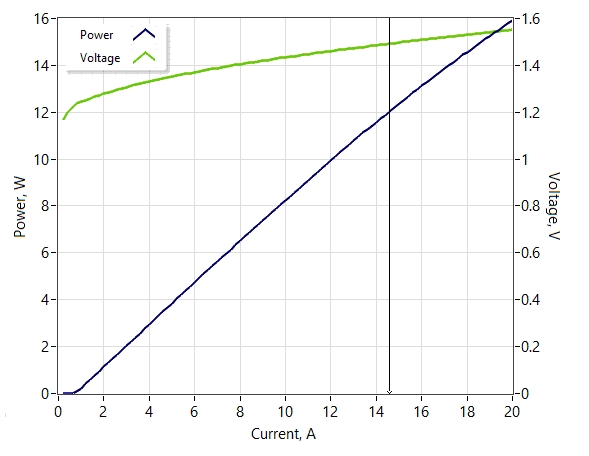

Output power: 12 W
Forward current: 14 A
Forward voltage: 1.5 V
Threshold current: 0.7 A
Spectrum bandwidth (3dB): 4 nm

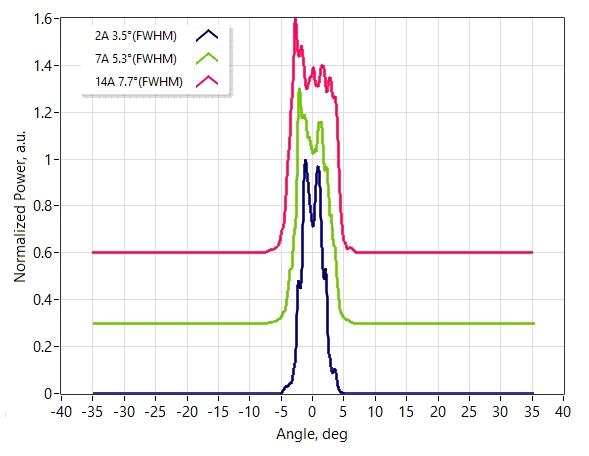

Slow axis beam divergence: 8 deg

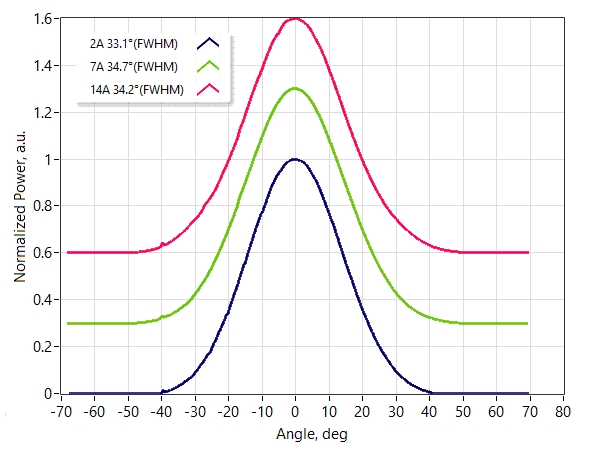

Fast axis beam divergence: 35 deg
Package: C-mount
Add to cart
applications
- Medical
