Broad-Area Laser Diode at 1064nm with 8W Output Power on C-Mount
Broad-Area Laser Diode at 1064nm with 8W Output Power on C-Mount
BAE1064004CM008WXXXX
Mean wavelength: 1064 nm
Mesa width: 130 um

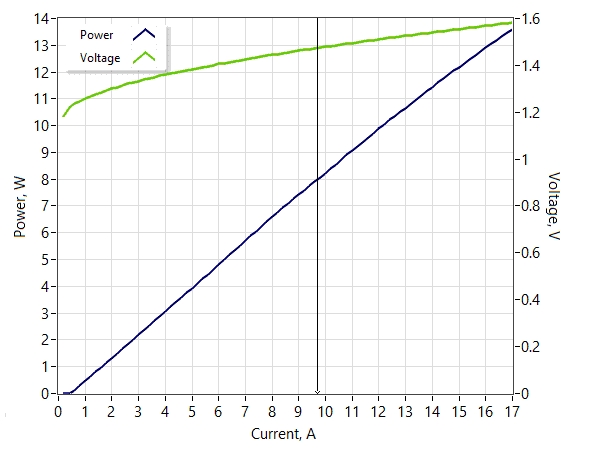

Output power: 8 W
Forward current: 10 A
Forward voltage: 1.5 V
Threshold current: 0.5 A

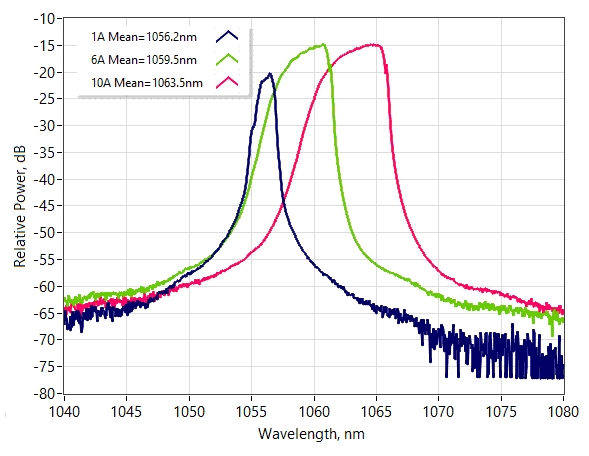

Spectrum bandwidth (3dB): 4 nm

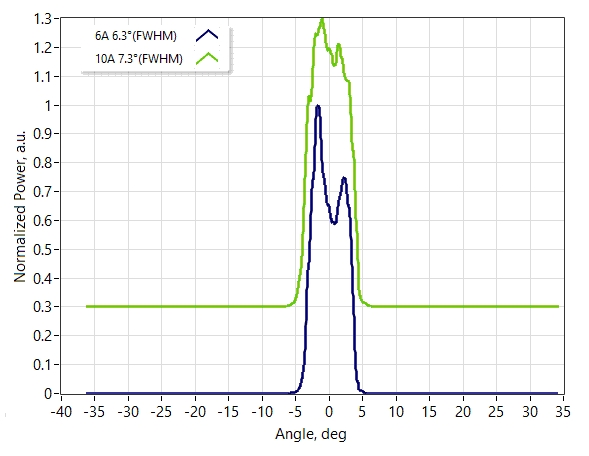

Slow axis beam divergence: 7 deg

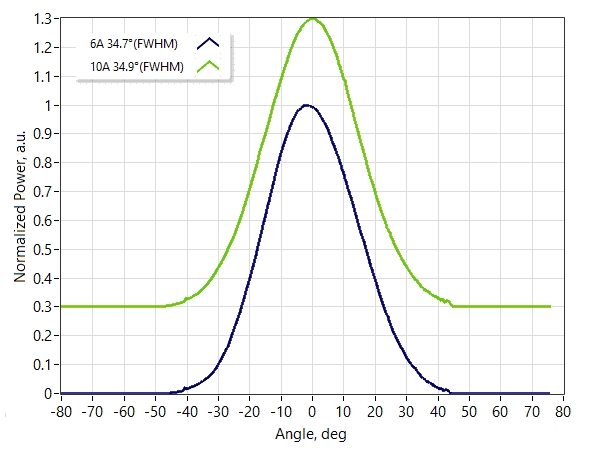

Fast axis beam divergence: 35 deg
Package: C-mount
Add to cart
applications
- Medical
