Fiber-coupled single-mode laser diode at 1190nm
Fiber-coupled single-mode laser diode at 1190nm
SML1190005YY500MXXXX
Mean wavelength: 1190 nm

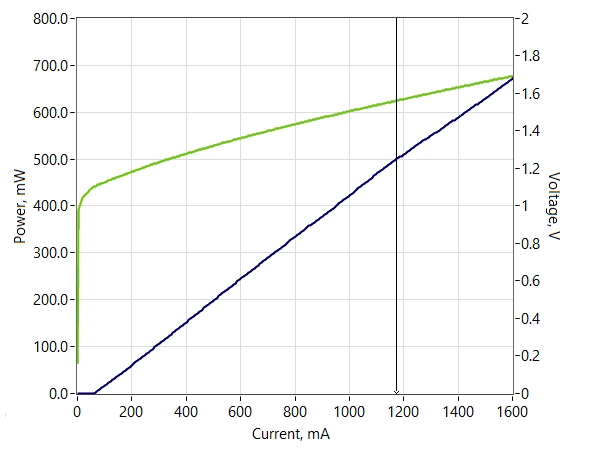

Output power: 500 mW
Forward current: 1200 mA
Forward voltage: 1.6 V
Threshold current: 110 mA

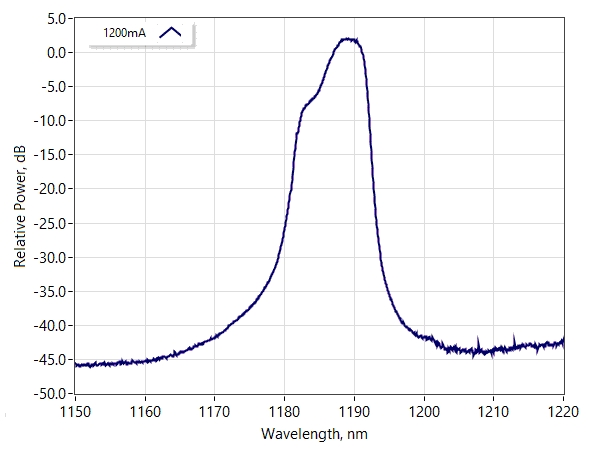

Spectrum bandwidth (3dB): 4.5 nm
Polarization extinction ratio: 18 dB
Slow axis beam divergence: deg
Fast axis beam divergence: deg
Package: Fiber-coupled
Add to cart
applications
- Bismuth Doped Fiber Amplifier (BDFA) pumping
