Broad-Area Laser Diode at 1064nm with 6W Output Power on Submount
Broad-Area Laser Diode at 1064nm with 6W Output Power on Submount
BAD1064004CC006WXXXX
Mean wavelength: 1064 nm
Mesa width: 90 um

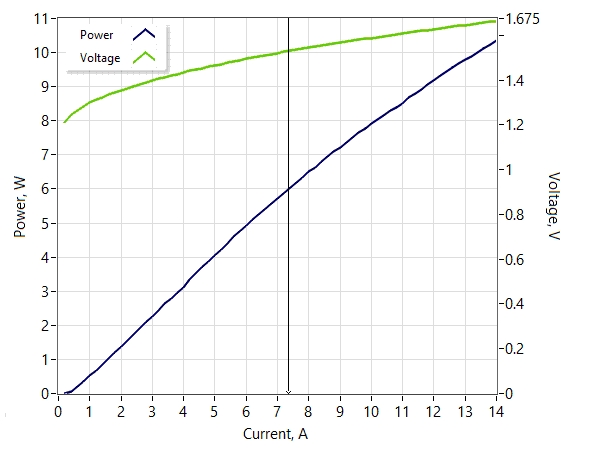

Output power: 6 W
Forward current: 7 A
Forward voltage: 1.5 V
Threshold current: 0.4 A

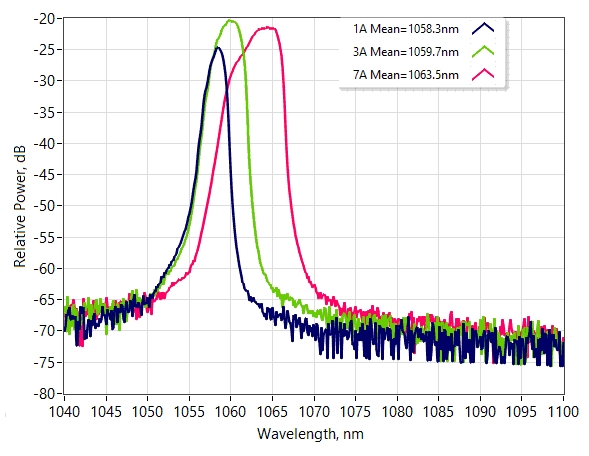

Spectrum bandwidth (3dB): 4 nm

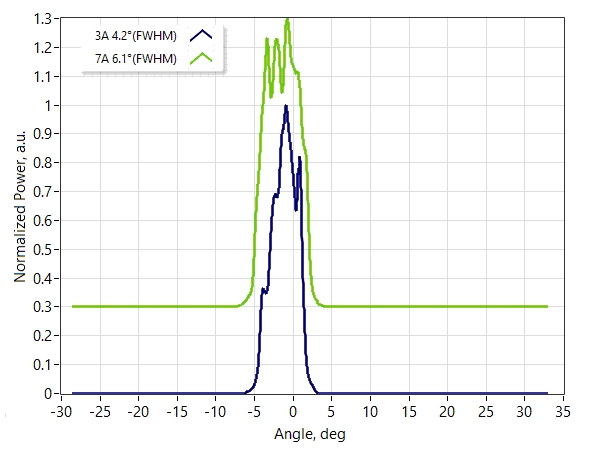

Slow axis beam divergence: 6 deg

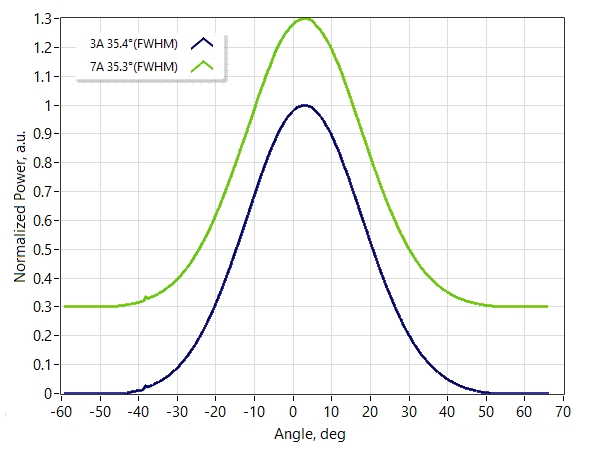

Fast axis beam divergence: 35 deg
Package: Chip-on-carrier
Add to cart
applications
- Medical
