Broad-Area Laser Diode at 1190nm with 6W Output Power on Submount
Broad-Area Laser Diode at 1190nm with 6W Output Power on Submount
BAH1190010CC006WXXXX
Mean wavelength: 1190 nm
Mesa width: 250 um
Output power: 6 W

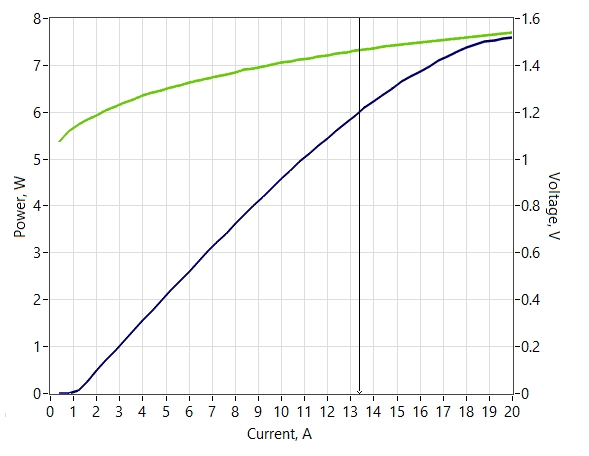

Forward current: 14 A
Forward voltage: 1.5 V
Threshold current: 1.1 A

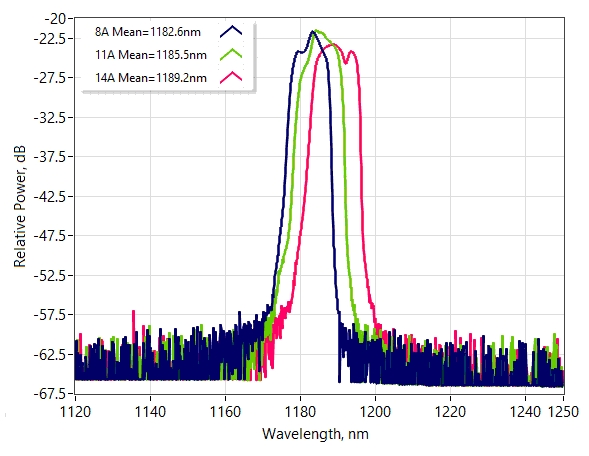

Spectrum bandwidth (3dB): 10 nm

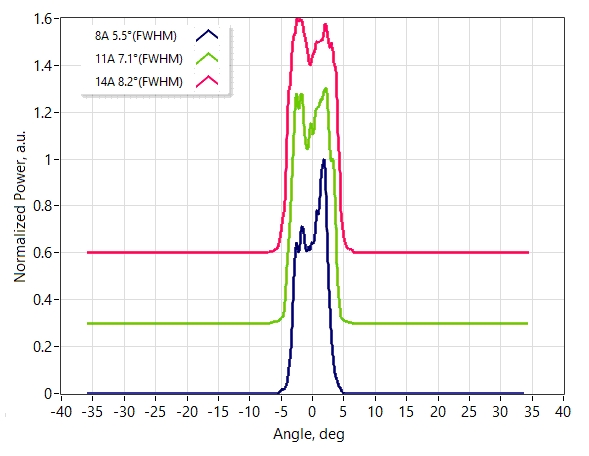

Slow axis beam divergence: 8 deg

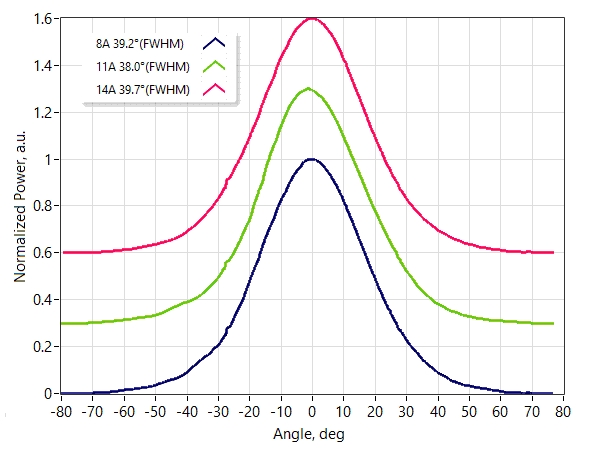

Fast axis beam divergence: 40 deg
Package: Chip-on-carrier
