Broad-Area Laser Diode at 1240nm with 9W Output Power on Submount
Broad-Area Laser Diode at 1240nm with 9W Output Power on Submount
BAH1240010CC009WXXXX

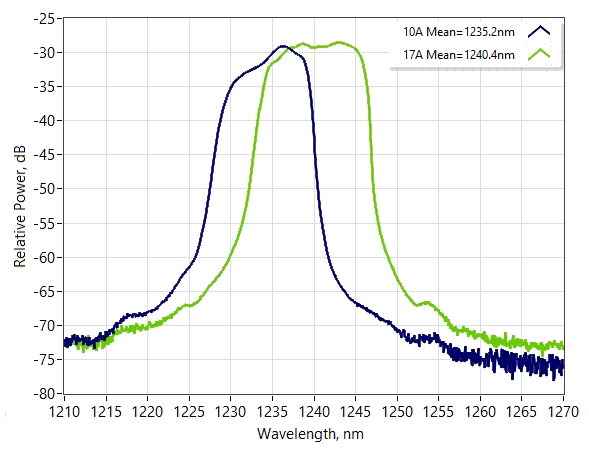

Mean wavelength: 1240 nm
Mesa width: 250 um

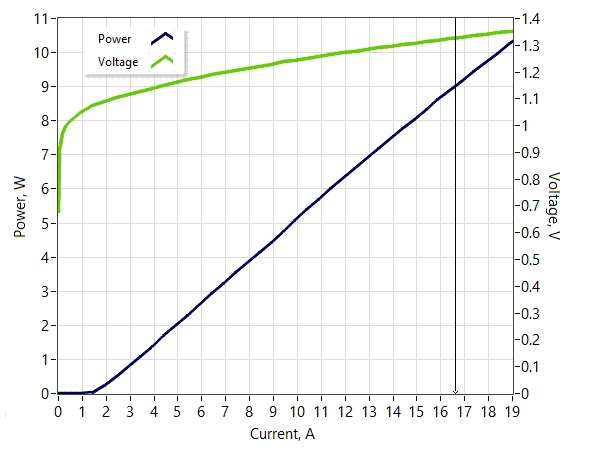

Output power: 9 W
Forward current: 17 A
Forward voltage: 1.4 V
Threshold current: 1.5 A
Spectrum bandwidth (3dB): 10 nm

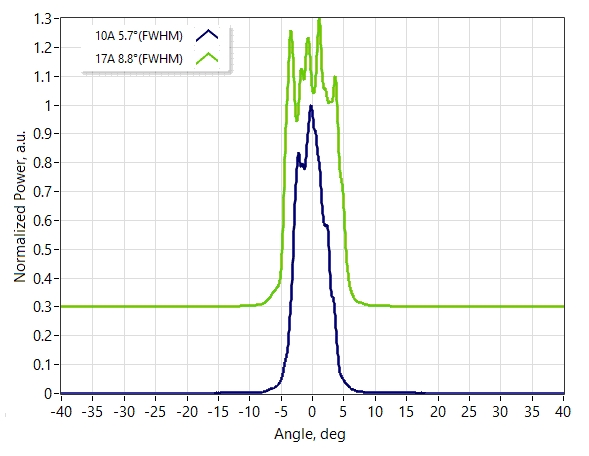

Slow axis beam divergence: 9 deg

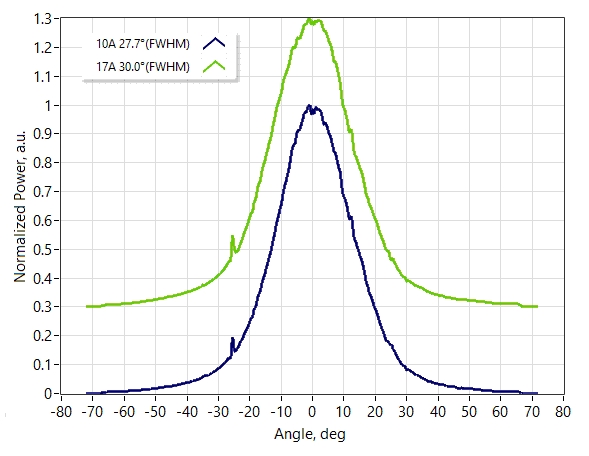

Fast axis beam divergence: 29 deg
Package: Chip-on-carrier
