Broad-Area Laser Diode at 1280nm with 5W Output Power on C-Mount
Broad-Area Laser Diode at 1280nm with 5W Output Power on C-Mount
BAE1280010CM005WXXXX

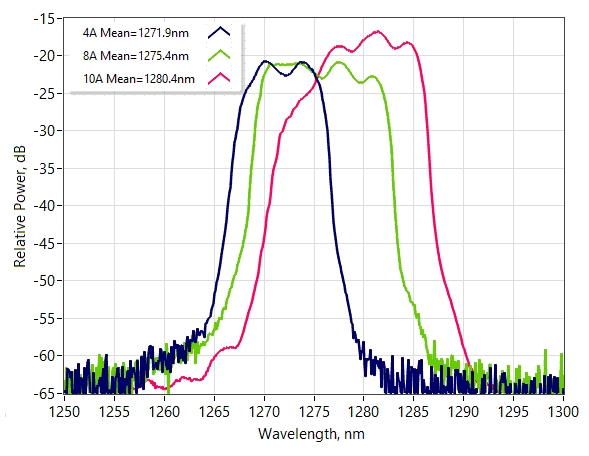

Mean wavelength: 1280 nm
Mesa width: 130 um

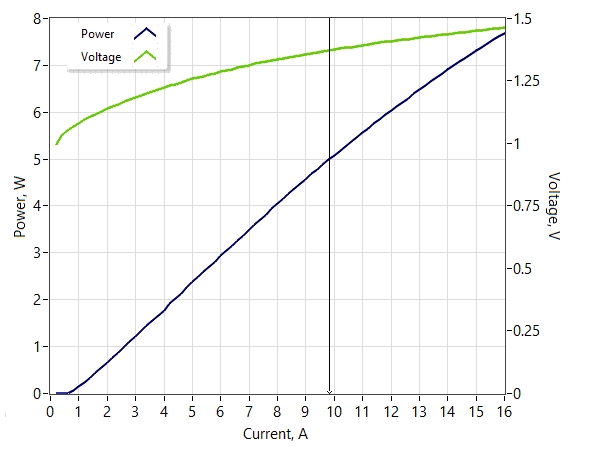

Output power: 5 W
Forward current: 10 A
Forward voltage: 1.4 V
Threshold current: 0.7 A
Spectrum bandwidth (3dB): 10 nm

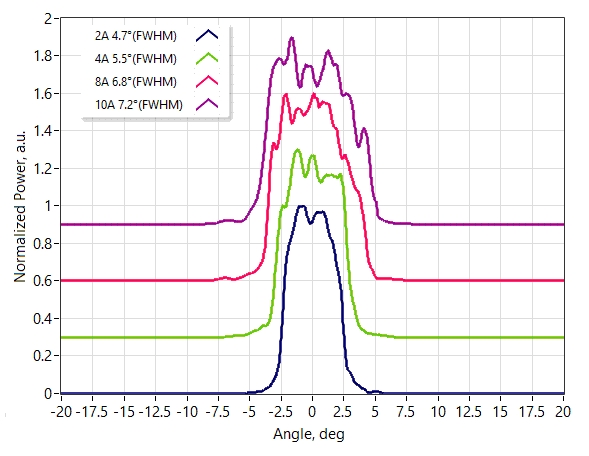

Slow axis beam divergence: 7 deg

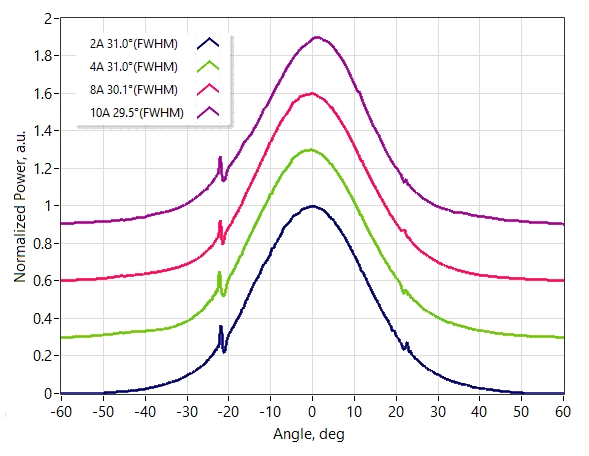

Fast axis beam divergence: 30 deg
Package: C-mount
Add to cart
applications
- Medical
- Photodynamic therapy
