ProductsMultimode Laser DiodesBroad-Area Lasers (BA)Broad-Area Laser Diode at 1290nm with 9W Output Power on C-Mount
Broad-Area Laser Diode at 1290nm with 9W Output Power on C-Mount
Broad-Area Laser Diode at 1290nm with 9W Output Power on C-Mount
BAH1290010CM009WXXXX
Mean wavelength: 1290 nm
Mesa width: 250 um

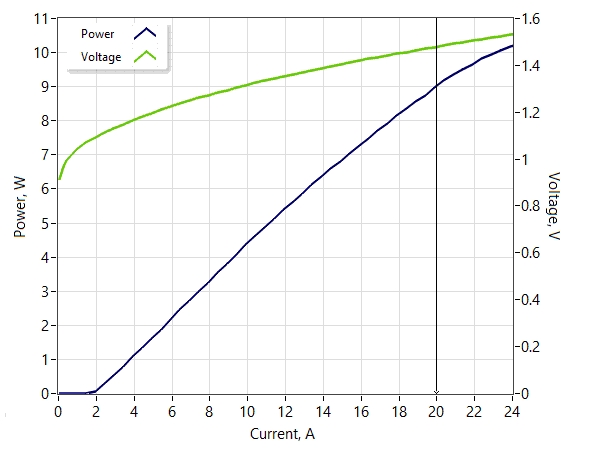

Output power: 9 W
Forward current: 20 A
Forward voltage: 1.5 V
Threshold current: 1.8 A

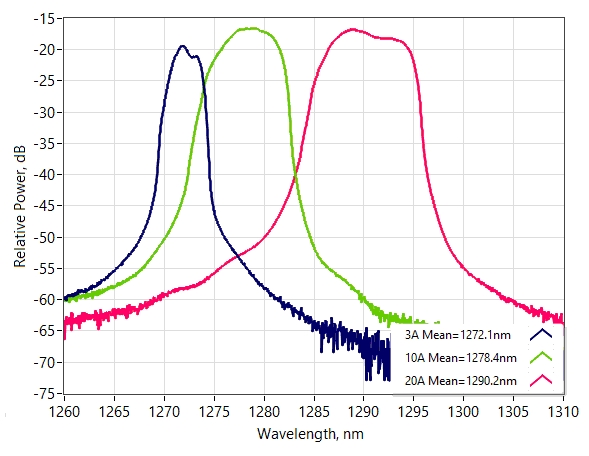

Spectrum bandwidth (3dB): 10 nm

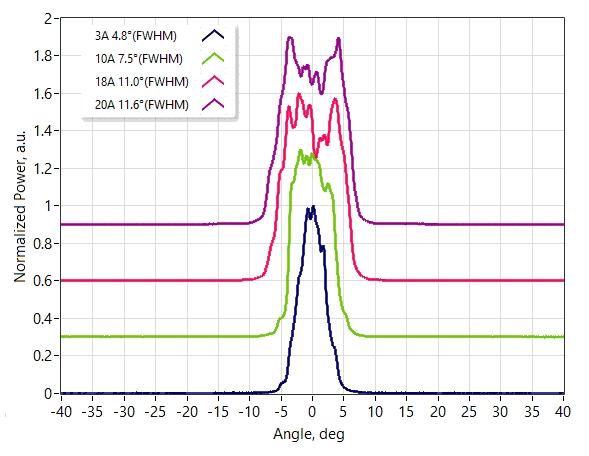

Slow axis beam divergence: 11 deg

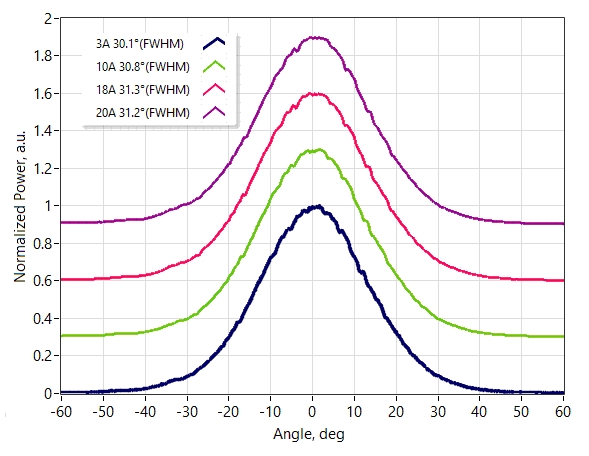

Fast axis beam divergence: 31 deg
Package: C-mount
Add to cart
applications
- Medical
- Photodynamic therapy
