Broad-Area Laser Diode at 1290nm with 9W Output Power on Submount
BA-laser on submount (CoC)

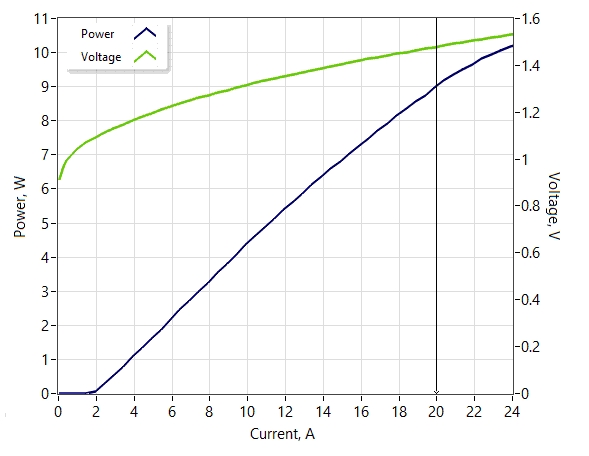

L-I-V characteristics

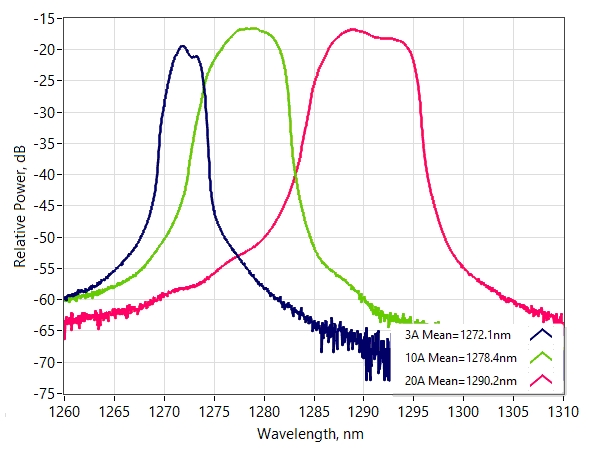

Optical spectrum

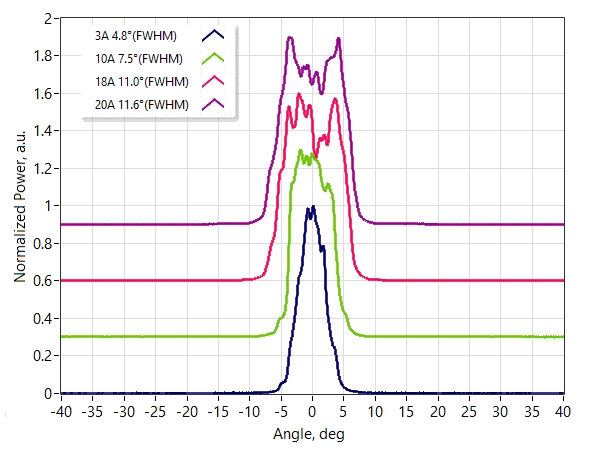

Slow axis far field

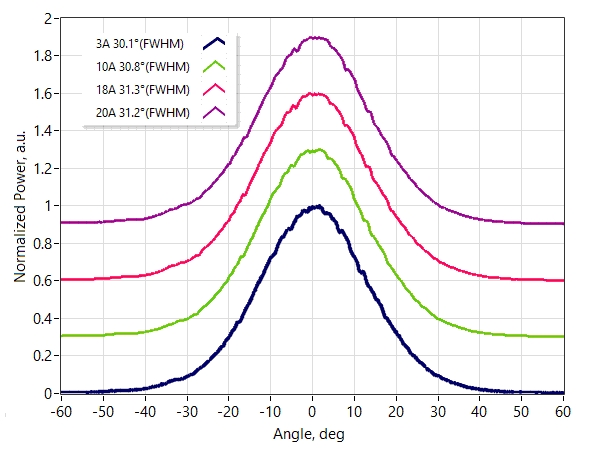

Fast axis far field

Broad-Area Laser Diode at 1290nm with 9W Output Power on Submount

BAH1290010CC009WXXXX
Mean wavelength:  1290 nm
Mesa width:  250 um
Output power:  9 W
Forward current:  20 A
Forward voltage:  1.5 V
Threshold current:  1.8 A
Spectrum bandwidth (3dB):  10 nm
Slow axis beam divergence:  11 deg
Fast axis beam divergence:  31 deg
Package:  Chip-on-carrier
Add to cart
applications
  • Medical
