Broad-Area Laser Diode at 1310nm with 5W Output Power on Submount
Broad-Area Laser Diode at 1310nm with 5W Output Power on Submount
BAE1310010CC005WXXXX
Mean wavelength: 1310 nm
Mesa width: 130 um

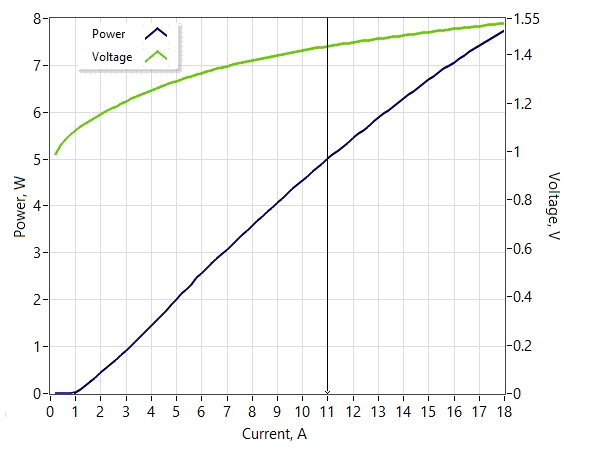

Output power: 5 W
Forward current: 11 A
Forward voltage: 1.4 V
Threshold current: 1 A

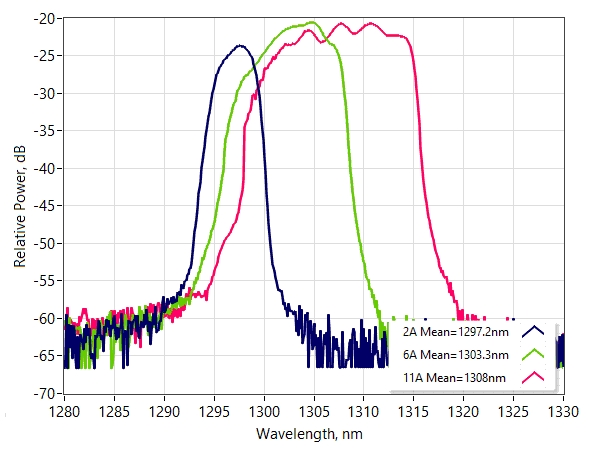

Spectrum bandwidth (3dB): 10 nm

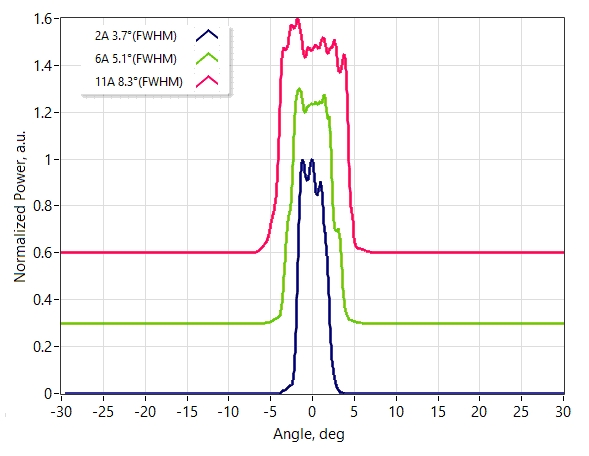

Slow axis beam divergence: 8 deg

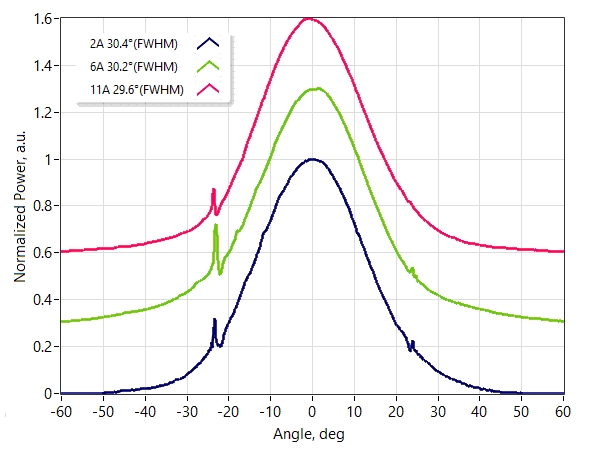

Fast axis beam divergence: 30 deg
Package: Chip-on-carrier
