Broad-Area Laser Diode at 1320nm with 2W Output Power on Submount
Broad-Area Laser Diode at 1320nm with 2W Output Power on Submount
BAA1320006CC002WXXXX
Mean wavelength: 1320 nm
Mesa width: 30 um

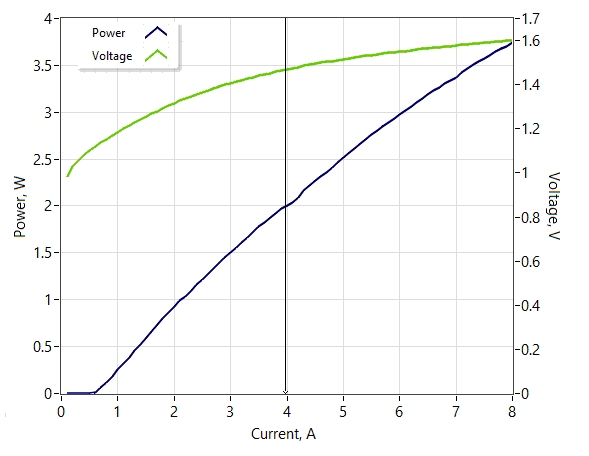

Output power: 2 W
Forward current: 4 A
Forward voltage: 1.5 V
Threshold current: 0.6 A

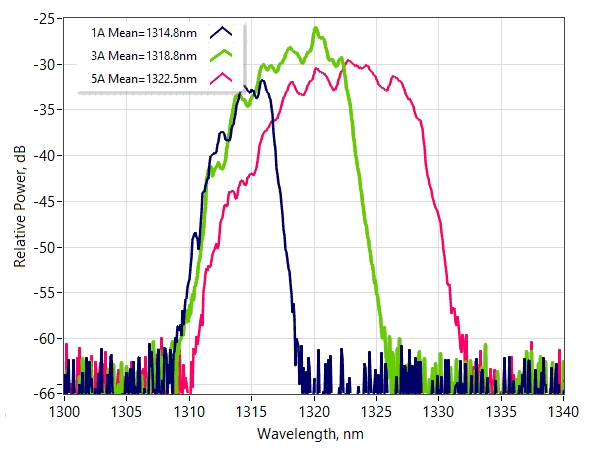

Spectrum bandwidth (3dB): 6 nm

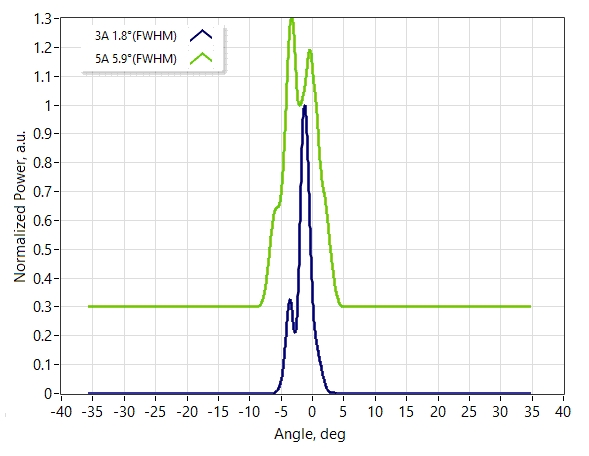

Slow axis beam divergence: 4 deg

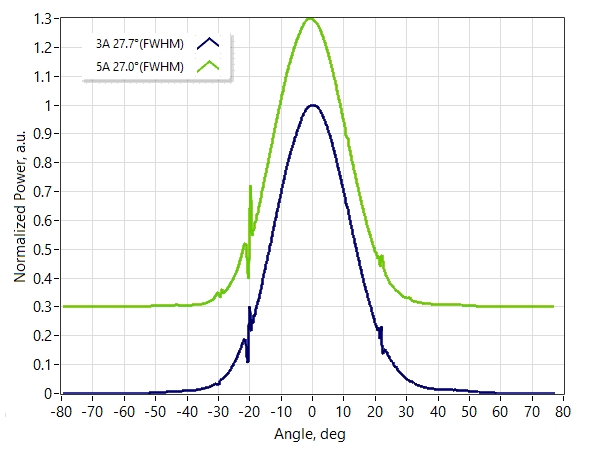

Fast axis beam divergence: 28 deg
Package: Chip-on-carrier
Add to cart
applications
- Wireless energy transmission
