Broad-Area Laser Diode at 1320nm with 3W Output Power on Submount
Broad-Area Laser Diode at 1320nm with 3W Output Power on Submount
BAD1320010CC003WXXXX

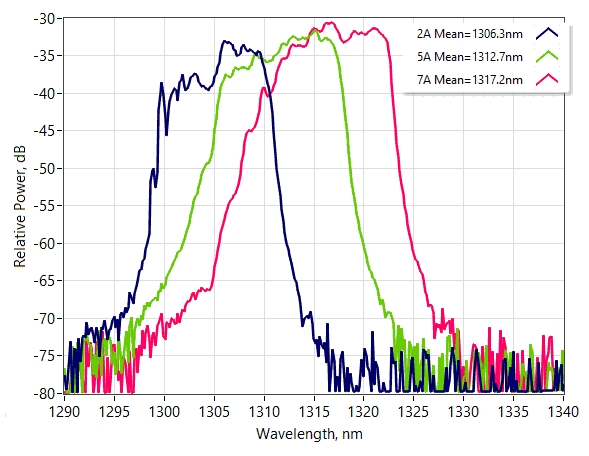

Mean wavelength: 1320 nm
Mesa width: 90 um

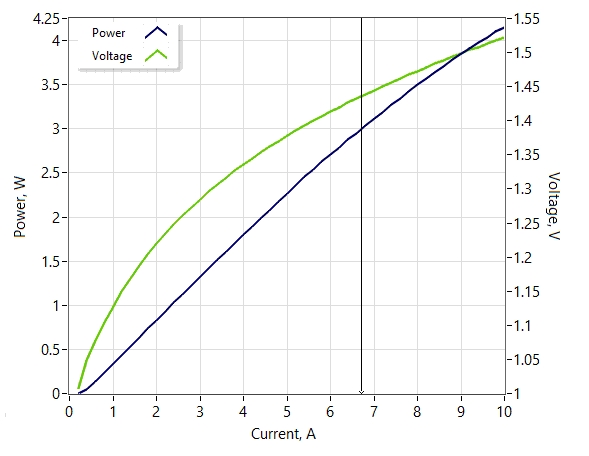

Output power: 3 W
Forward current: 7 A
Forward voltage: 1.5 V
Threshold current: 0.3 A
Spectrum bandwidth (3dB): 10 nm

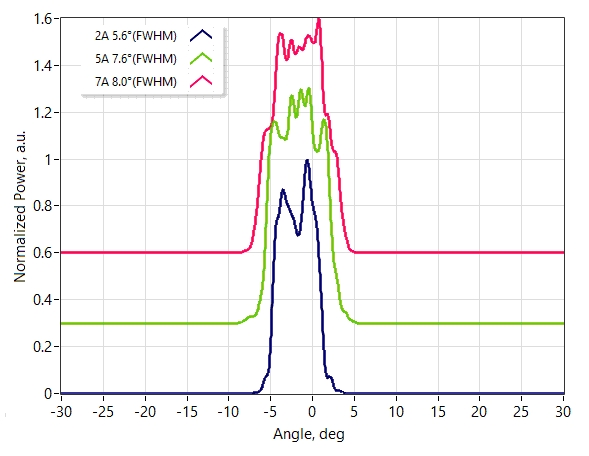

Slow axis beam divergence: 8 deg

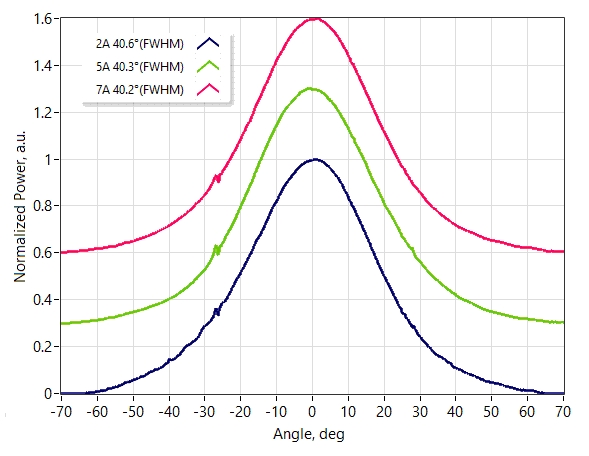

Fast axis beam divergence: 40 deg
Package: Chip-on-carrier
Add to cart
applications
- Medical
- Surgery
